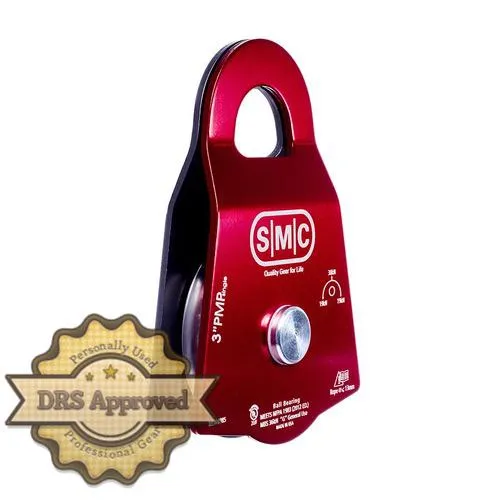

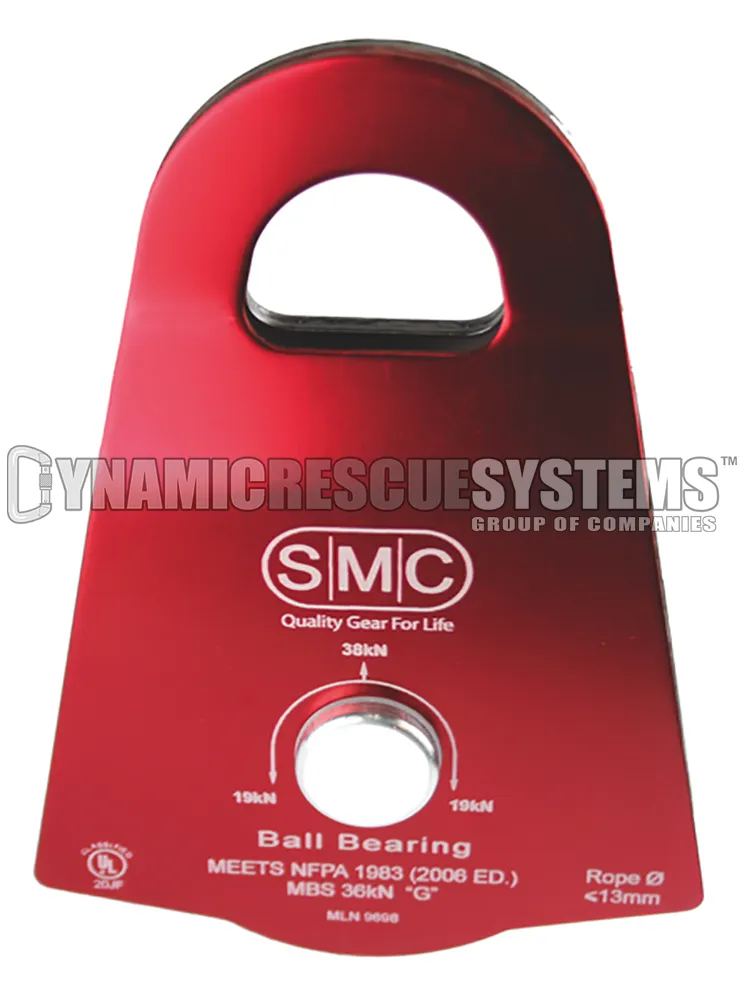

The unique shape of SMC's aluminum side plates allow the efficient use of prusik hitches as a belay or progress capture device. Constructed with a 3-inch diameter sheave running on a high-efficiency ball bearing. Low profile fasteners help eliminate the possibility of the pulley snagging. Pulley will accommodate up to 13 mm rope.



• • Designed for 11 mm to 13 mm ropes
  • UL certified to NFPA 1983 ‚ÄúG‚Äù General Use.
  • High efficiency sealed ball bearings providing flawless function under conditions that would shut down lesser grade pulleys.
  • Side plates are precisely tensioned for easy one-handed operation and secure placement at any point along the rope.
  • Oversized top hole is designed for use with up to 2 rescue carabiners and is large enough to allow sleeve of locked carabiner to pass through.
  • Low profile fasteners reduce snagging and hanging up when pulley is being moved.
  • Wide base design works most efficiently with Prusik cords of up to 8mm.
  • Made in the USA
• • Color: Red
  • Type: Single Pulley
  • MBS: 38 kN (8542 lbf)
  • Weight: 12.5 oz (354 g)
  • Length: 5.85" (14.9 cm)
  • Width: 4.17" (10.6 cm)
  • Height: 1.38" (3.5 cm)
  • Axle: Ball Bearing
  • Sheave: 2.97" Aluminum
  • Tread: 2.46"
  • Max Rope Size: 13 mm
  • Material: Aluminum
